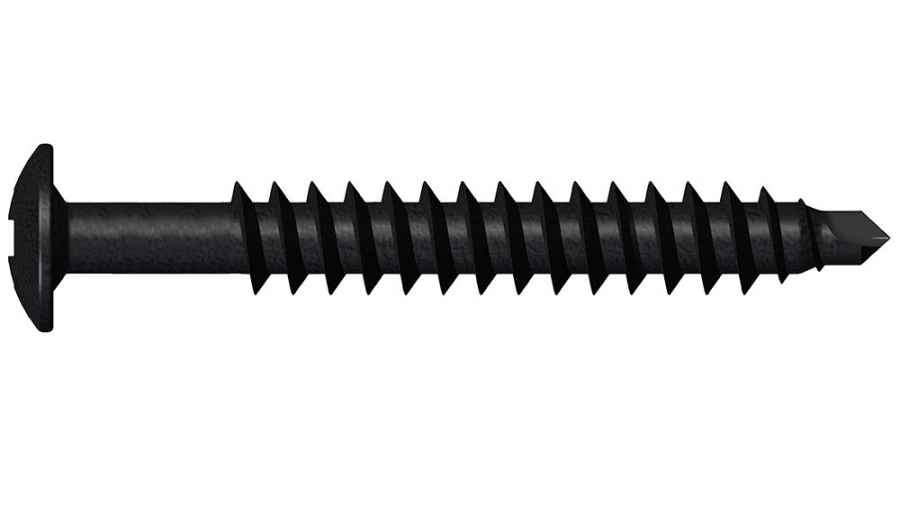

DFHD-67 - Fixings for Steel/Aluminium Substrates
Universal 0.7 - 0.88mm Steel, Aluminium >0.63mm & Steel Deck Max 2 x 1.25mm
Technical Details
OMG roofing screw (FM approval), PH-3 truss head, reduced drill point. Coating: Black CR-10. 30-cycles of the Kesternich test acc. DIN 50018 S2,0L.
Application
Universal 0.7 - 0.88mm Steel, Aluminium >0.63mm & Steel Deck Max 2 x 1.25mm
Required Length
Build up: Steel and aluminium decks + min. 20mm.
Decking Plates
Metal plates DVP-DF/EF and Plastic Locking plate.
Material
Carbon Steel

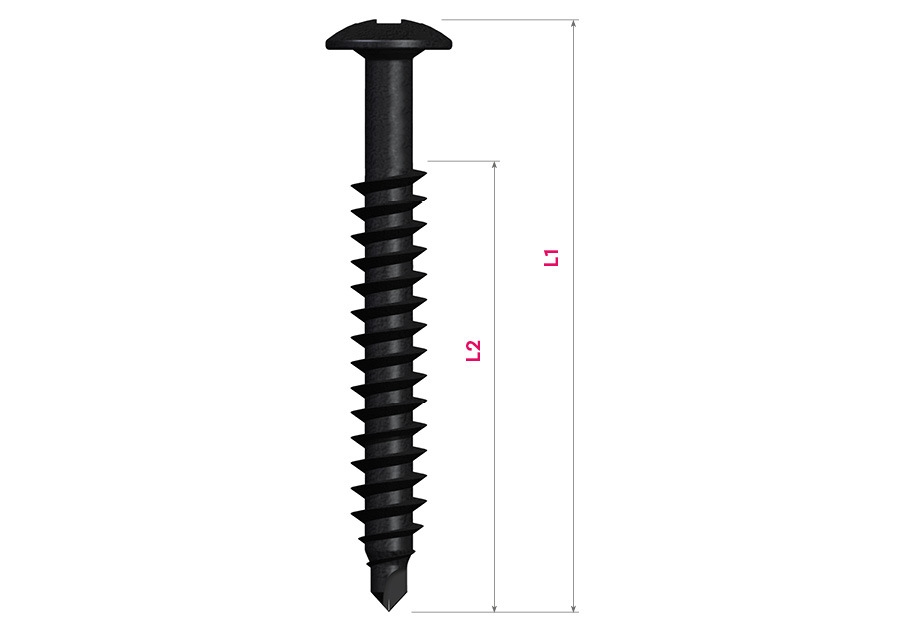

| Product Code | Diameter | L1 | L2 | Quantity |
|---|---|---|---|---|
| DFHD67032 | 6.7mm | 32mm | 32mm | 1000 |
| DFHD67050 | 6.7mm | 50mm | 50mm | 1000 |
| DFHD67075 | 6.7mm | 75mm | 75mm | 1000 |
| DFHD67100 | 6.7mm | 100mm | 75mm | 1000 |
| DFHD67125 | 6.7mm | 125mm | 100mm | 500 |
| DFHD67150 | 6.7mm | 150mm | 100mm | 500 |
| DFHD67175 | 6.7mm | 175mm | 100mm | 500 |
| DFHD67200 | 6.7mm | 200mm | 100mm | 500 |
| DFHD67225 | 6.7mm | 225mm | 100mm | 500 |
| DFHD67250 | 6.7mm | 250mm | 100mm | 500 |
| DFHD67275 | 6.7mm | 275mm | 100mm | 500 |
| DFHD67300 | 6.7mm | 300mm | 100mm | 500 |
| DFHD67350 | 6.7mm | 350mm | 100mm | 250 |
| DFHD67410 | 6.7mm | 410mm | 100mm | 250 |
| DFHD67460 | 6.7mm | 460mm | 100mm | 250 |
| DFHD67510 | 6.7mm | 510mm | 100mm | 250 |
| DFHD67560 | 6.7mm | 560mm | 100mm | 125 |
