EFHD - Fixings for Concrete/Timber/Steel Substrates
Concrete/ Timber
Technical Details

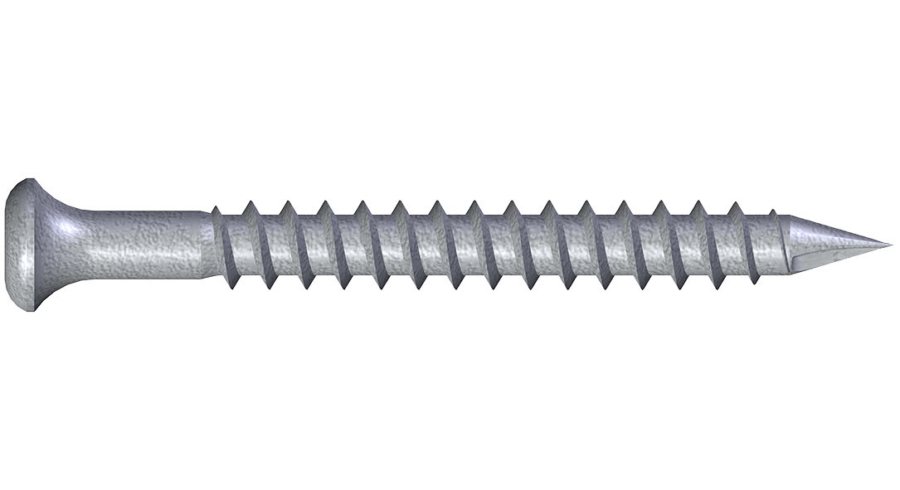

Roofing screw, bugle head with EF- headmark. Torx25 recess, Ricoh-Point. Coating: Magni Silver. 15-cycles of the Kesternich test acc. DIN 50018 S2,0L.
Application
Steel deck up to 2 x 1.25mm, timber, lightweight concrete and concrete.
Pressure Plates/Telescopic Tubes
Metal plates DVP-EF and Telescopic Plastic tubes.
Required Length
Build up: Timber + min. 18mm/ steel: + min. 20mm/ lightweight concrete + min. 55mm/ concrete + min. 25mm. (Pre drill with 5.0 or 5.5 dia. SDS bit depending on concrete density.)
Material
Carbon Steel

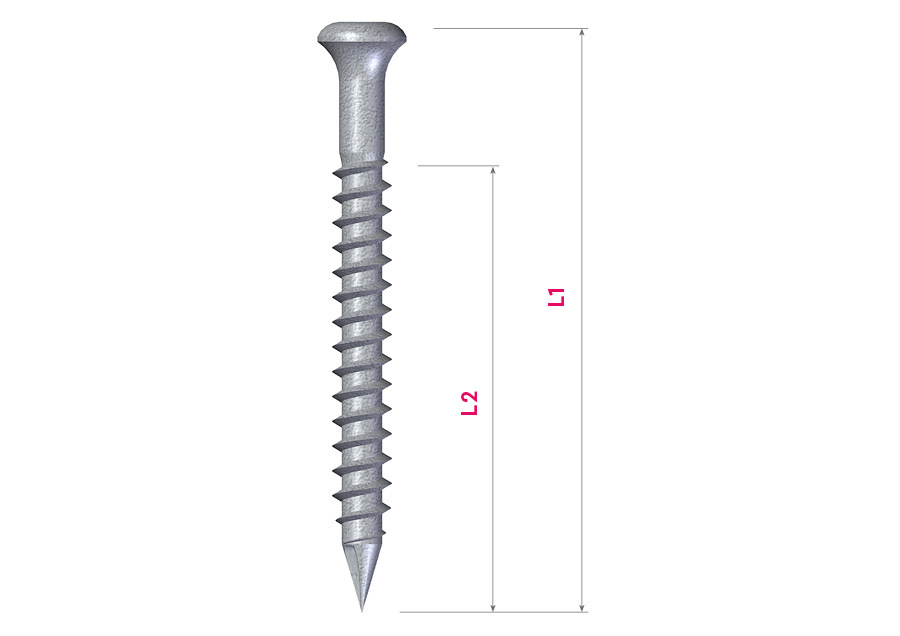

| Product Code | Diameter | L1 | L2 | Quantity |
|---|---|---|---|---|
| EFHD63030 | 6.3mm | 30mm | 25mm | 1000 |
| EFHD63045 | 6.3mm | 45mm | 40mm | 1000 |
| EFHD63060 | 6.3mm | 60mm | 55mm | 500 |
| EFHD63070 | 6.3mm | 70mm | 60mm | 500 |
| EFHD63080 | 6.3mm | 80mm | 60mm | 500 |
| EFHD63100 | 6.3mm | 100mm | 70mm | 500 |
| EFHD63130 | 6.3mm | 130mm | 70mm | 500 |
| EFHD63160 | 6.3mm | 160mm | 70mm | 500 |
| EFHD63180 | 6.3mm | 180mm | 70mm | 500 |
| EFHD63200 | 6.3mm | 200mm | 70mm | 500 |
| EFHD63230 | 6.3mm | 230mm | 70mm | 500 |
| EFHD63250 | 6.3mm | 250mm | 70mm | 500 |
| EFHD63275 | 6.3mm | 275mm | 70mm | 500 |
| EFHD63300 | 6.3mm | 300mm | 70mm | 500 |
| EFHD63330 | 6.3mm | 330mm | 70mm | 500 |
| EFHD63350 | 6.3mm | 350mm | 70mm | 500 |
| EFHD63400 | 6.3mm | 400mm | 70mm | 250 |
