Flat Roof Products
EDS-SRB - Bi-Met Fixings for Steel Substrates
Steel >0.88 - Max 2 x 1.25mm
Technical Details

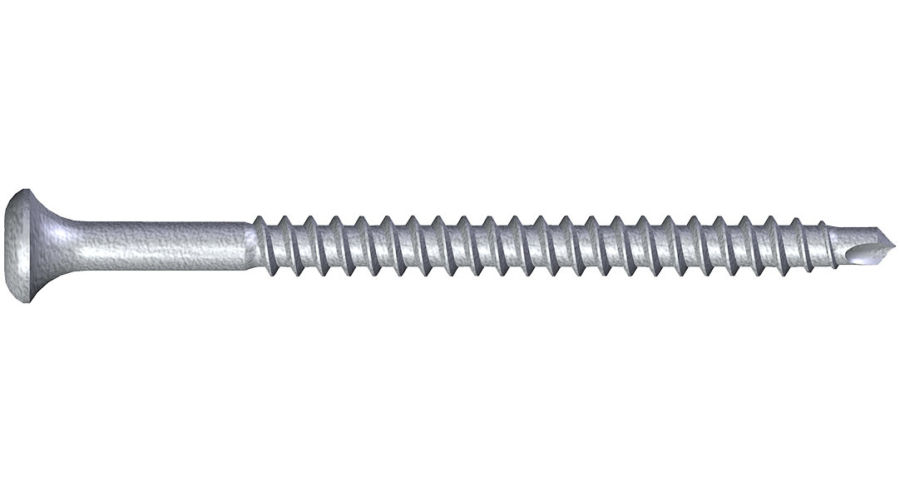

Bimetal roofing screw, grade A4, bugle head with EF- headmark. Torx25 recess, reduced drill point. Coating: Zinc-Plated.
Application
Steel deck up to 2 x 1.25mm.
Pressure Plates/Telescopic Tubes
Metal plates DVP-EF and Telescopic Plastic tubes.
Required Length
Build up + min. 20mm.
Material
Stainless Steel

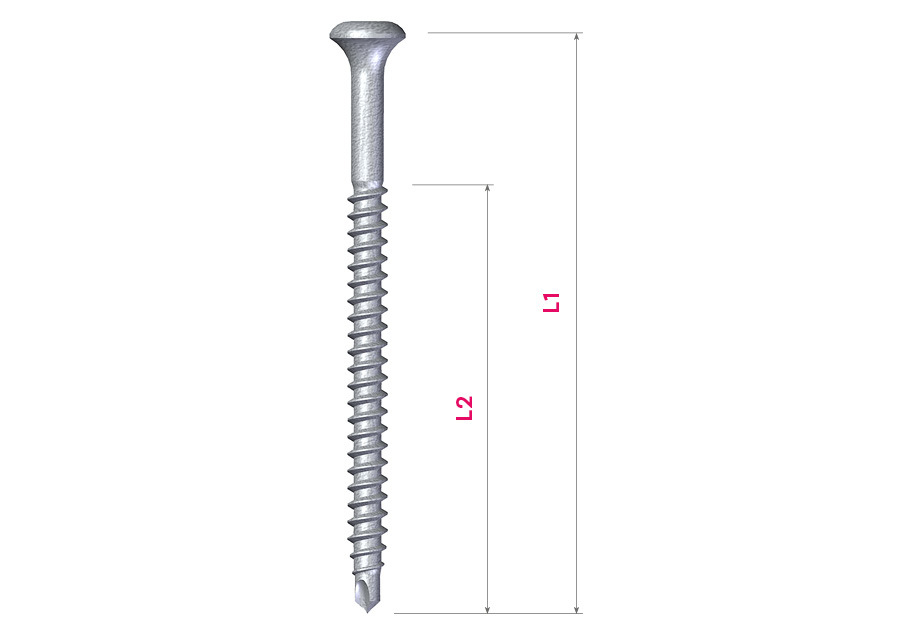

| Product Code | Diameter | L1 | L2 | Quantity |
|---|---|---|---|---|
| EDSSRB48060 | 4.8mm | 60mm | 50mm | 500 |
| EDSSRB48080 | 4.8mm | 80mm | 50mm | 500 |
| EDSSRB48100 | 4.8mm | 100mm | 50mm | 500 |
| EDSSRB48120 | 4.8mm | 120mm | 75mm | 500 |
| EDSSRB48140 | 4.8mm | 140mm | 75mm | 500 |
| EDSSRB48160 | 4.8mm | 160mm | 120mm | 500 |
| EDSSRB48180 | 4.8mm | 180mm | 120mm | 500 |
| EDSSRB48210 | 4.8mm | 210mm | 120mm | 500 |
| EDSSRB48240 | 4.8mm | 240mm | 120mm | 500 |
